- Theory: Temperature Controller
- Usage: Industrial
- Model Number: REX C700
- Max Measuring Temperature: 120°C & Above
- Display Type: Analog
- Brand Name: XMSJ
- Origin: Mainland China
- Certification: CE

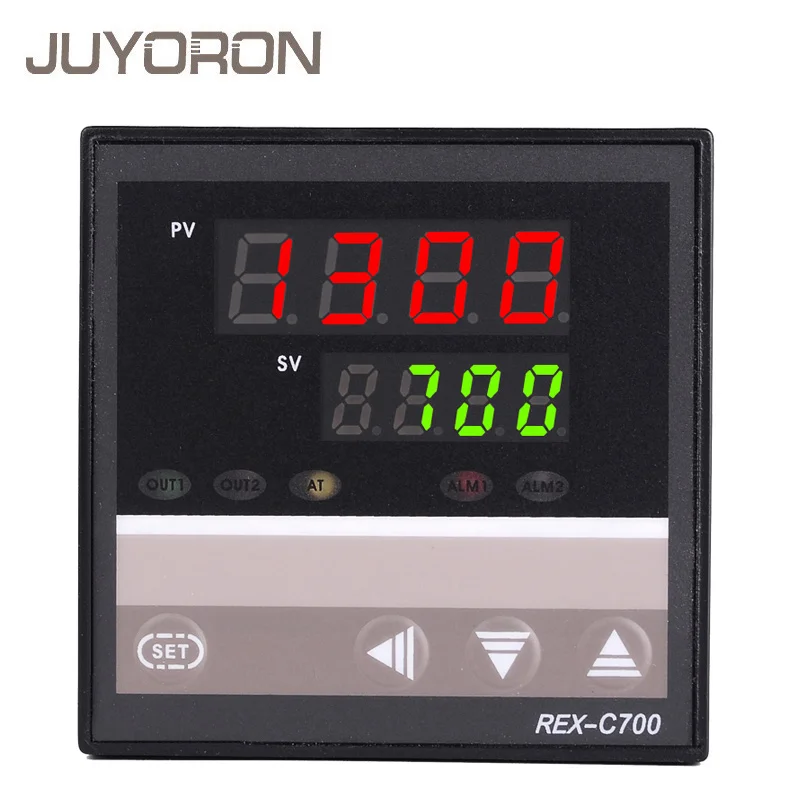

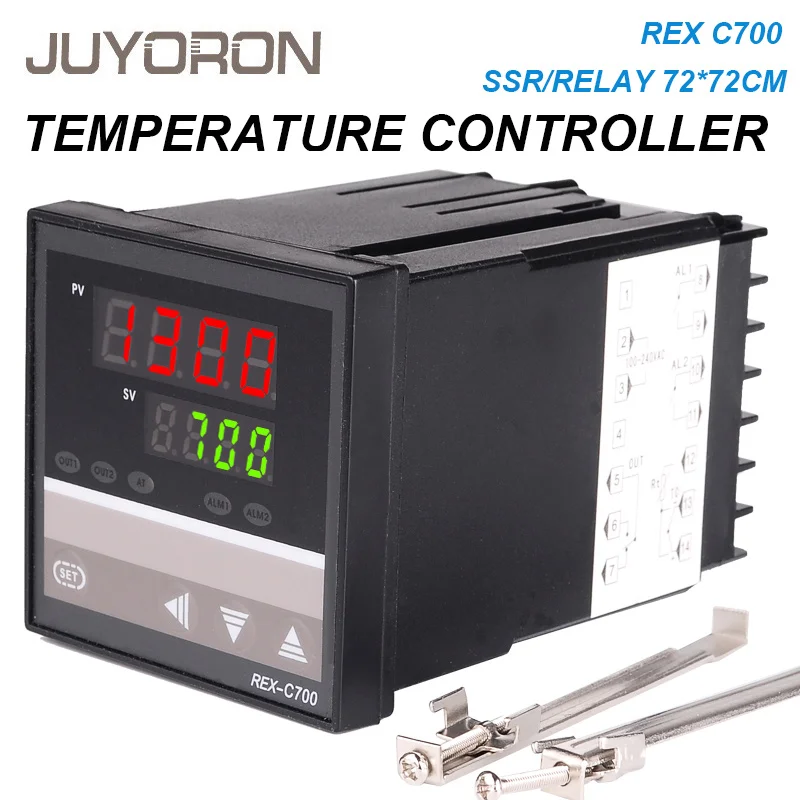

RKC Digital PID Temperature Controller REX-C700 72*72mm
Input: Thermocouple/RTD
Output: Relay
Alarm: 1
Power: 100-240VAC
Product Features:
-
Dual display for both set temperature and process temperature
-
Size, 96*96mm
-
Universal input, support 10 different types of thermocouples and RTD inputs by customers selected at panels.
-
Auto-tune function can find the best PID parameter automatically
-
Displays temperature in Celsius
-
Four digits LED display can go up to "9999"
-
Can be powered by either DC or AC power source
-
Uses it for Kiln,Furnace,Oven,Incubator temperature control
-
Uses it in heating control as well as for cooling control
-
It is used in various industries to control and monitor process temperatures
Product Main Specifications:
Input type |
TC: K, E, S, R, J, T, B, N RTD: Pt100, Cu50 |
Input range |
K (-200~+1300ºC), S (-50~+1600ºC), R (-50~+1600ºC), T (-200~400ºC), E (-200~900ºC), J (-200~1200ºC), B (350~1800ºC), Pt100 (-99.9~600.0ºC) or (-200~+600ºC), Cu50 (-50~150ºC) |
Display |
Two lines, Four digits. °C. |
Display Resolution |
1°C, 1°F, or 0.1°C, 0. 1°F, with Pt100 |
Accuracy |
±0.5% or ±1 unit of full input range |
Control mode |
PID, On-Off |
Output mode |
Relay contact: 3A at 240 VAC. SSR: 12VDC, Current: 4~20 mA Voltage: 0~10V |
Alarm |
Upper-limit bias alarm |
Power consumption |
<2 Watt |
Power supply voltage rating |
85~265VAC/50~60Hz |
Dimensions |
Rex-C700 72*72*110mm |
Cautions:
-
Only clean the instrument when power off.
-
Please use a soft cloth or cotton paper to clean up the stain on the display.
-
Do not clean up or touch the display by hard matters in case of any scrath.
-
Never use sharp & hard matters such ass screwdrivers or ball pan to touch the buttons on the panel,in case of any scrath or damage.
Packages:
-
1×PID Digital Temperature Controller (NOT include thermocouple)
-
1 x English User Manual
